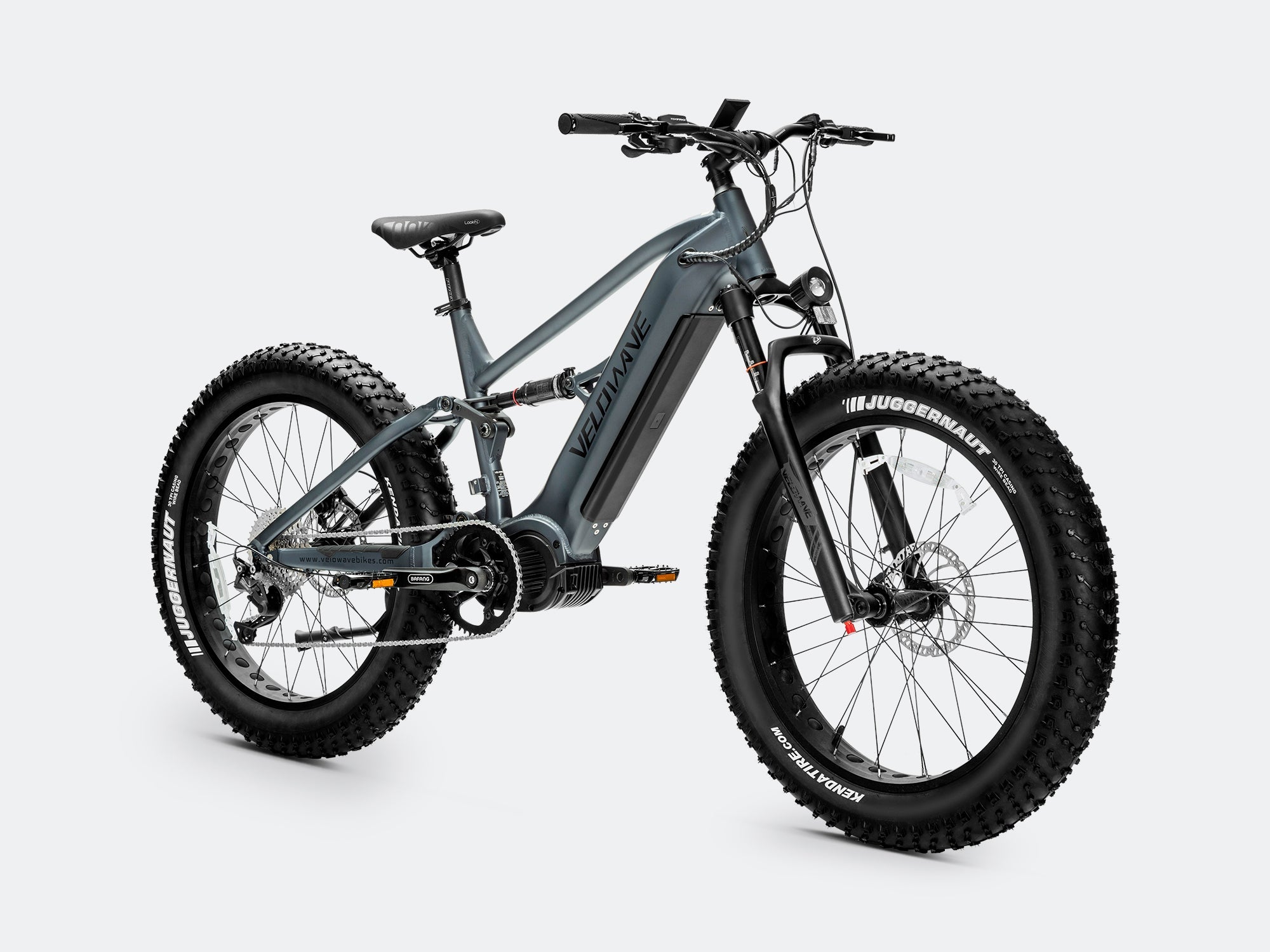

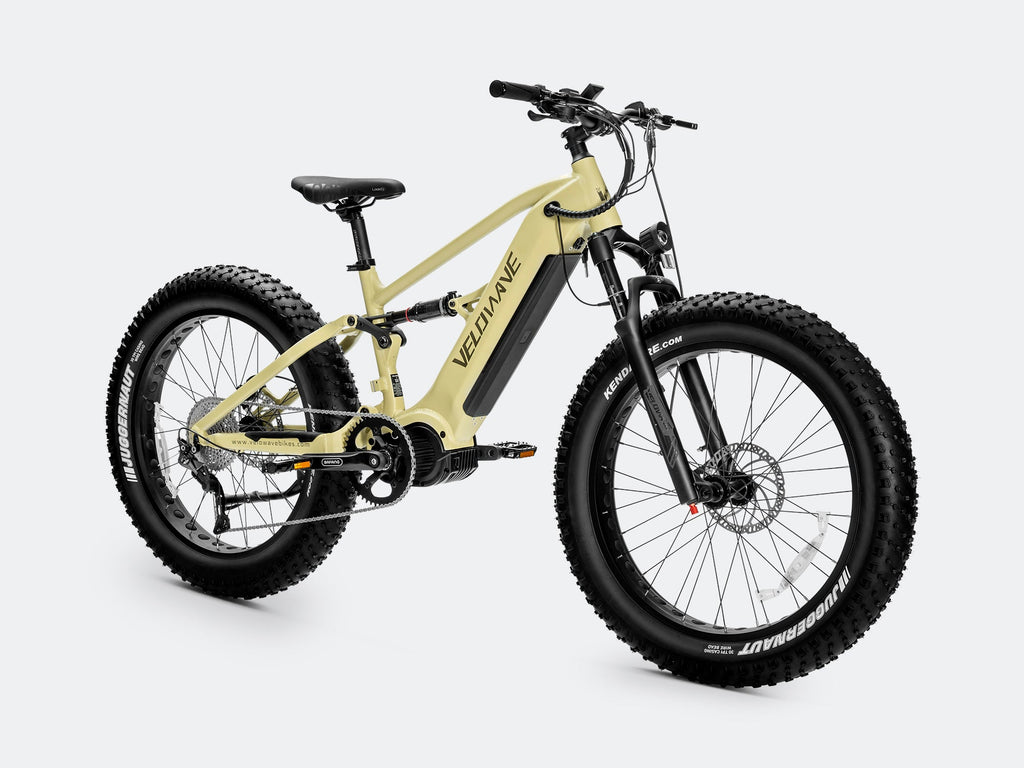

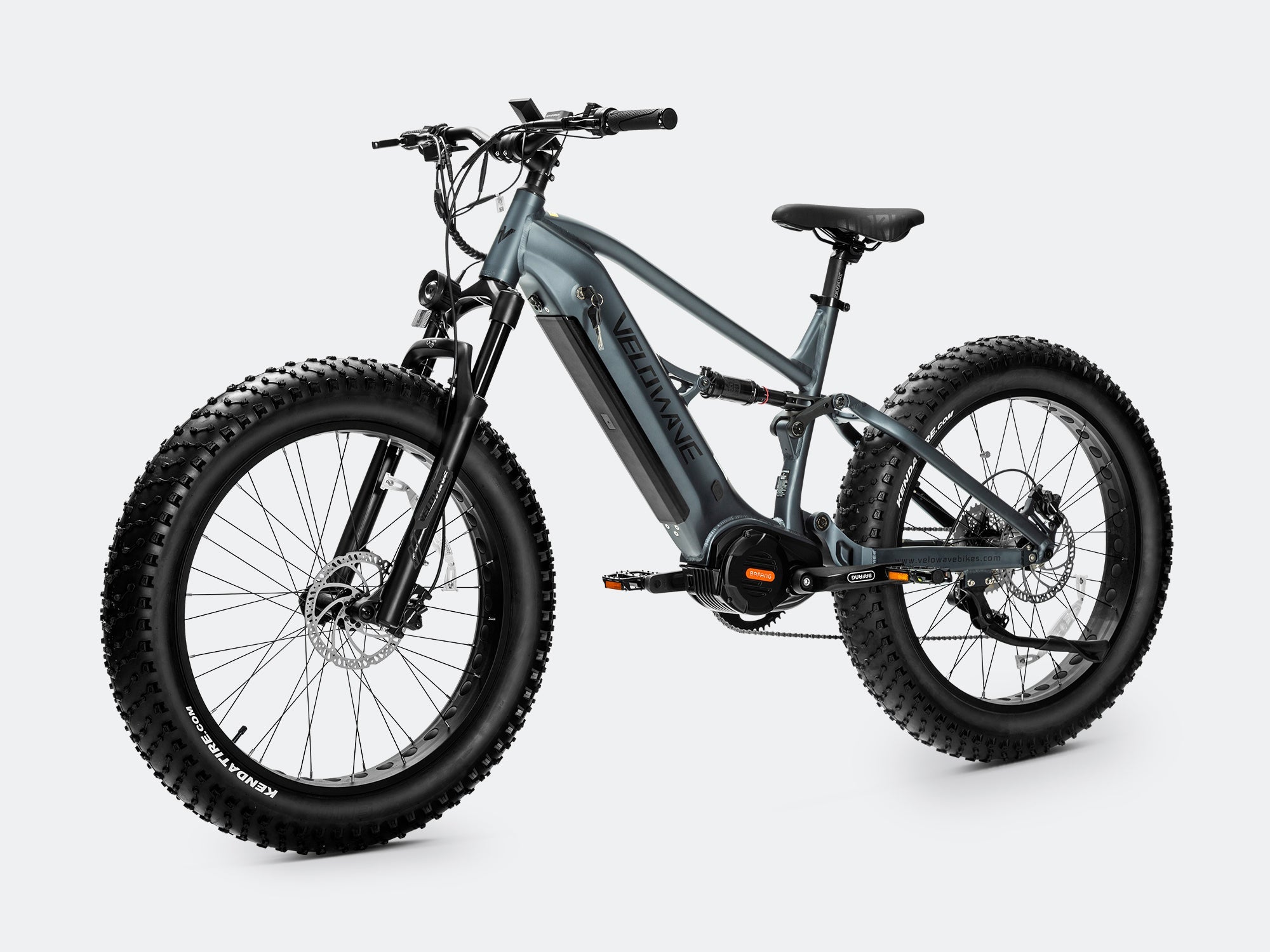

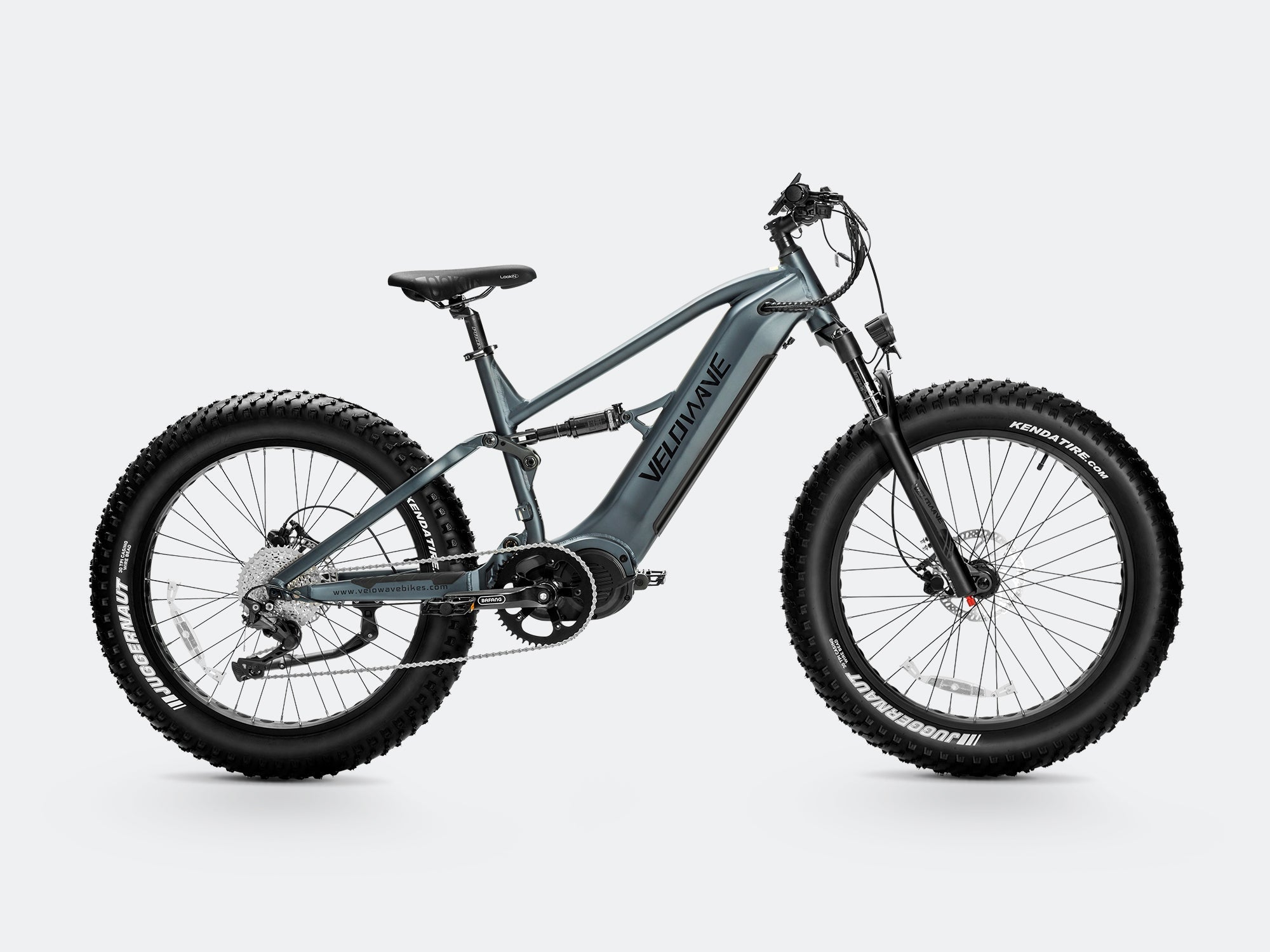

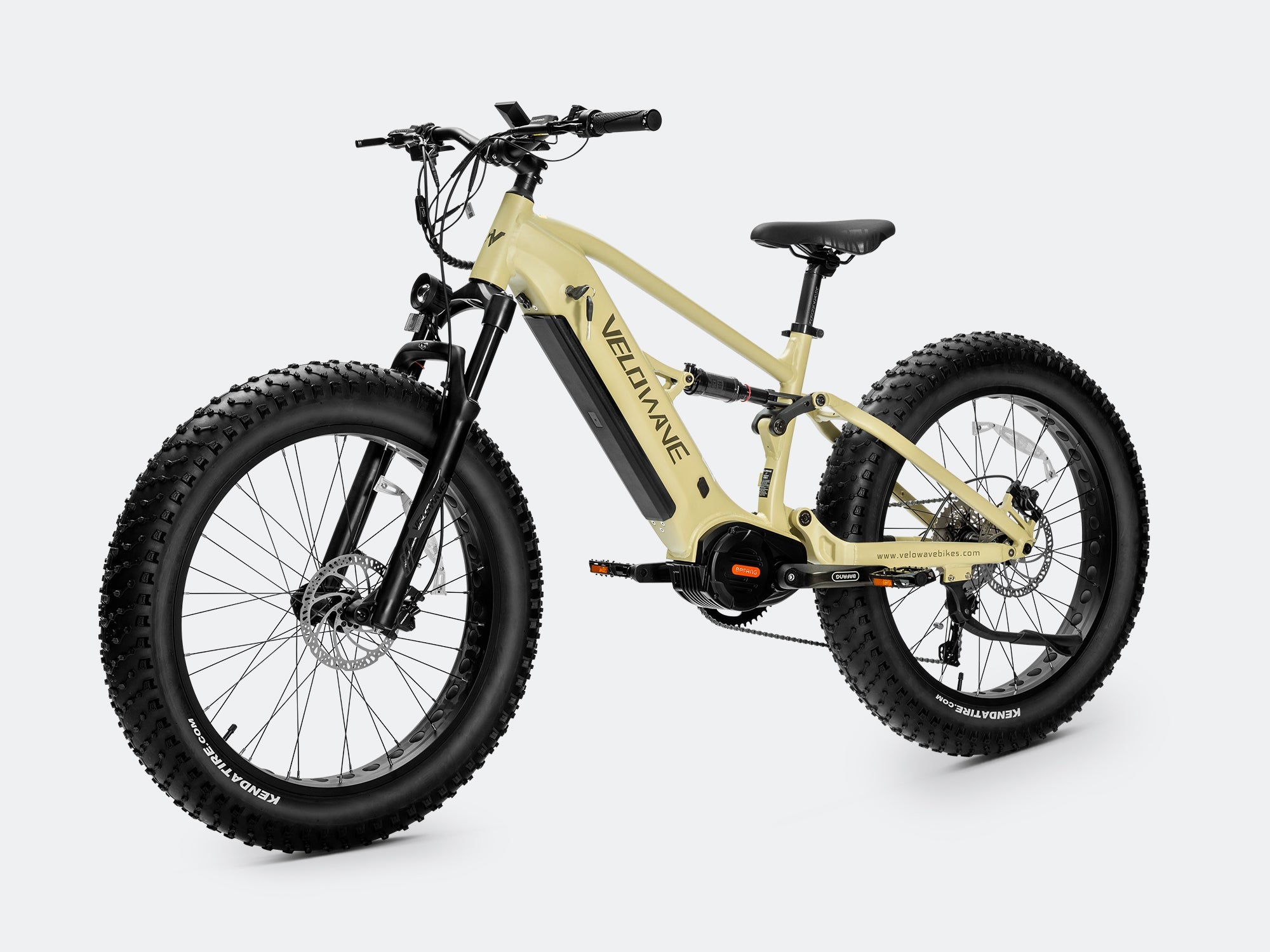

Velowave Brawny XM

Take on any terrain with confidence and control. The Brawny XM Electric Bike combines a lightweight 6061 aluminum alloy frame with integrated front and rear suspension, giving you 139mm of plush travel to smooth out the toughest trails. Paired with a 1000W motor delivering up to 160Nm of torque, this fat-tire e-bike isn’t just built to ride—it’s built to conquer.

Whether you’re cruising city streets, climbing steep hills, or exploring rugged backroads, the Brawny XM provides the perfect balance of power, comfort, and endurance. With a removable 960Wh battery, you’ll enjoy up to 85 miles on pedal assist, making long-distance rides and off-grid adventures easier than ever.

Key Features

✅ Powerful 1000W Motor (Peak 1200W) – Delivers instant acceleration and up to 160Nm of torque for hills and heavy loads.
✅ Long-Range 960Wh Battery – Go the distance with up to 85 miles per charge on pedal assist, or 60 miles on throttle alone.
✅ Full Suspension Comfort – Front air suspension fork (100mm travel) with lockout + RockShox rear shock (44mm travel) absorbs bumps for a smoother ride.
✅ Fat-Tire Stability – Kenda 26” x 4.8” tires give you traction on sand, snow, mud, and gravel.
✅ Smart TFT Display – Color screen with 6 levels of pedal assist, speed, battery, and trip tracking.
✅ Shimano 10-Speed Drivetrain – Smooth and reliable shifting for precision on trails or city streets.
✅ Hydraulic Disc Brakes (180mm) – Powerful, responsive stopping with automatic motor cut-off for safety.
✅ High Load Capacity – Carries up to 385 lbs, perfect for riders plus gear.

Specifications

General

• Class: Class 3 (Up to 28 MPH pedal assist / 20 MPH throttle)

• Range: Up to 85 miles (PAS) / 60 miles (Throttle)

• Max Speed: 28 MPH pedal assist / 20 MPH throttle

Frameset

• Frame: 6061 Aluminum Alloy, Internal Battery, Full Suspension, 139mm Frame Travel

• Fork: Air Suspension, 100mm travel, lockout

• Rear Suspension: RockShox RS-MNR-R-C4, 44mm travel, rebound adjustable

Wheels & Tires

• Rims: 26” Aluminum, 36H

• Tires: Kenda 26” x 4.8” Fat Tires

• Spokes: Black Stainless Steel 13G

E-System

• Battery: 48V 20Ah (960Wh), Removable, LG cells

• Motor: 1000W (Peak 1200W), 160Nm torque

• Charger: 48V 3A (Approx. 7 hours charge)

• Display: TFT Color Display with Backlight

• Pedal Assist: 6 Levels, Torque Sensor

• Throttle: On-Demand (works from stop)

• Lights: 48V LED Headlight (80 LUX), Rear Blinking Light

Drivetrain

• Shifter: Shimano 10-Speed

• Freewheel: Shimano 11-42T, 10-Speed Cassette

• Crankset: 170mm Alloy, 48T

• Rear Derailleur: Shimano Deore RD-M4120

• Chain: KMC, 10-Speed

Components

• Brakes: Tektro Hydraulic Disc Brakes, 180mm Rotors

• Saddle: Wide Comfort Saddle

• Seatpost: Alloy, 31.6mm x 300mm

• Handlebar: 740mm Alloy, 31.8mm clamp

• Stem: 60mm, 6° rise

• Grips: Ergonomic Comfort

• Kickstand: Included, Rear Mount

Weight & Capacity

• Net Weight: 82 lbs (37.2 kg)

• Battery Weight: 11.4 lbs (5.15 kg)

• Max Payload: 385 lbs (175 kg)

Dimensions

• Product Size: 2100 x 1158 x 745 mm

• Packaging Size: 1700 x 350 x 900 mm

Why Choose the Brawny XM?

If you need an e-bike that’s tough enough for trails but versatile enough for daily commuting, the Brawny XM delivers. With its combination of high torque, long range, and premium suspension, it’s built for riders who refuse to compromise between power and comfort.

👉 Take your adventures further. The Brawny XM Electric Bike is ready when you are.
