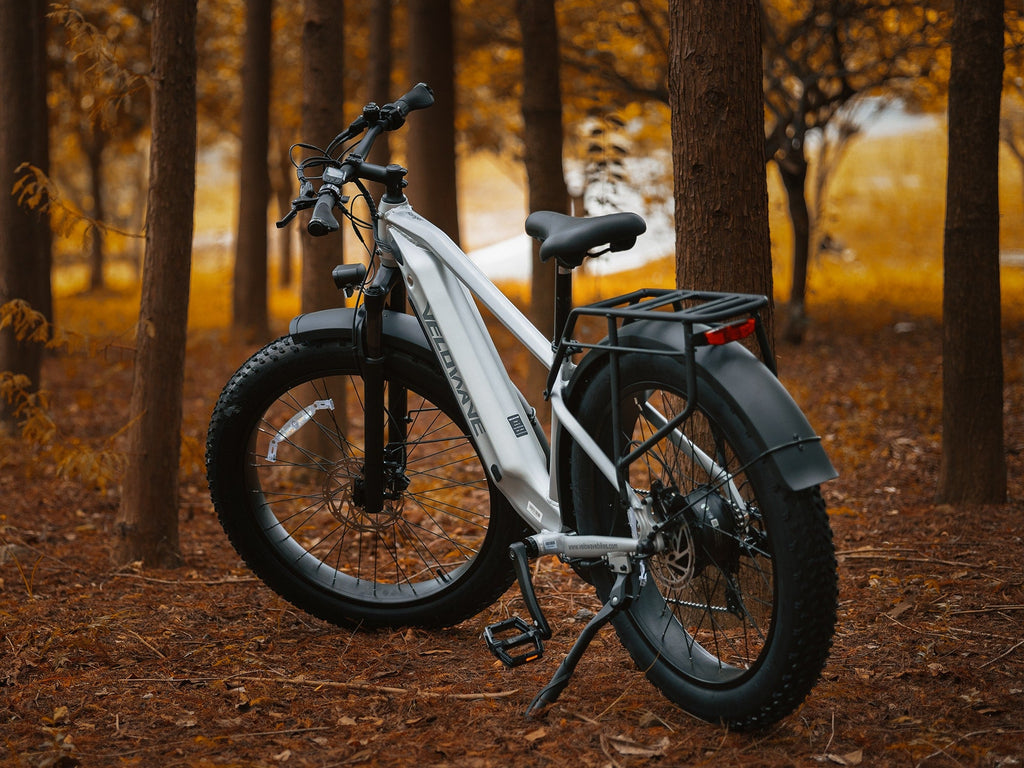

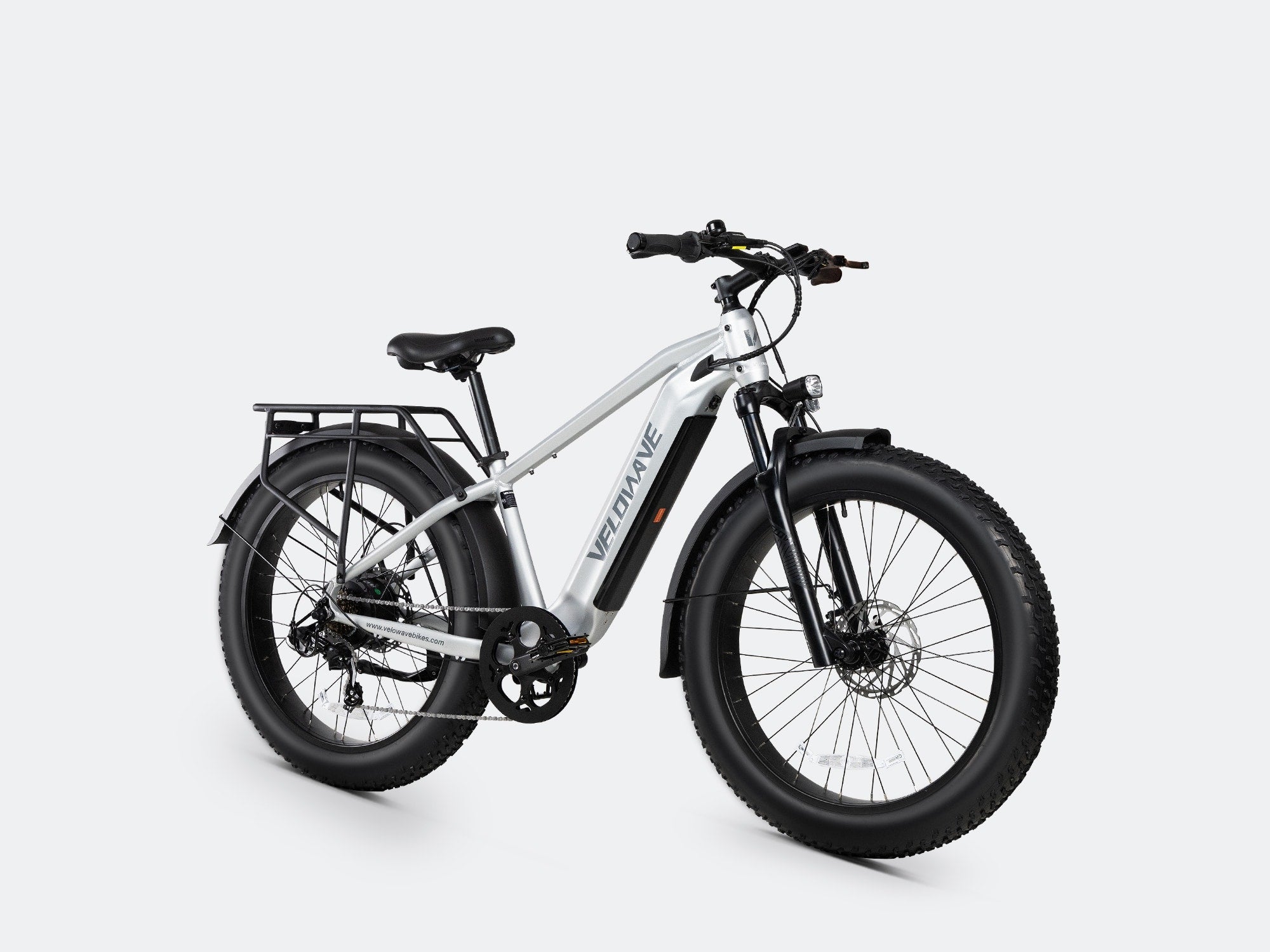

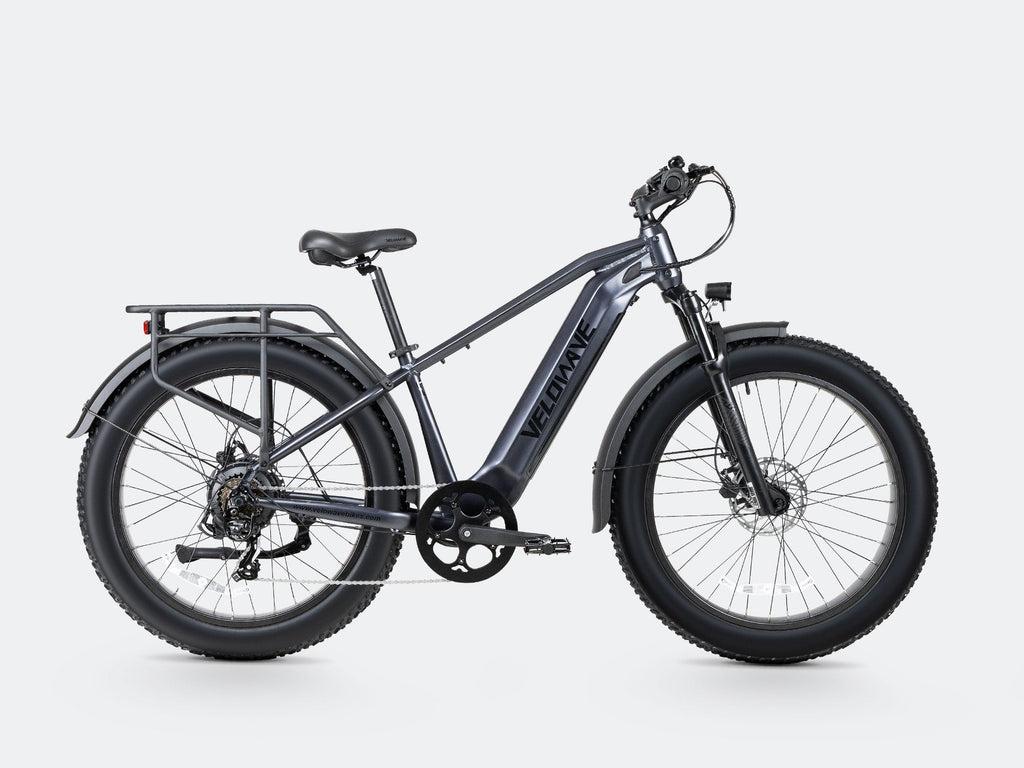

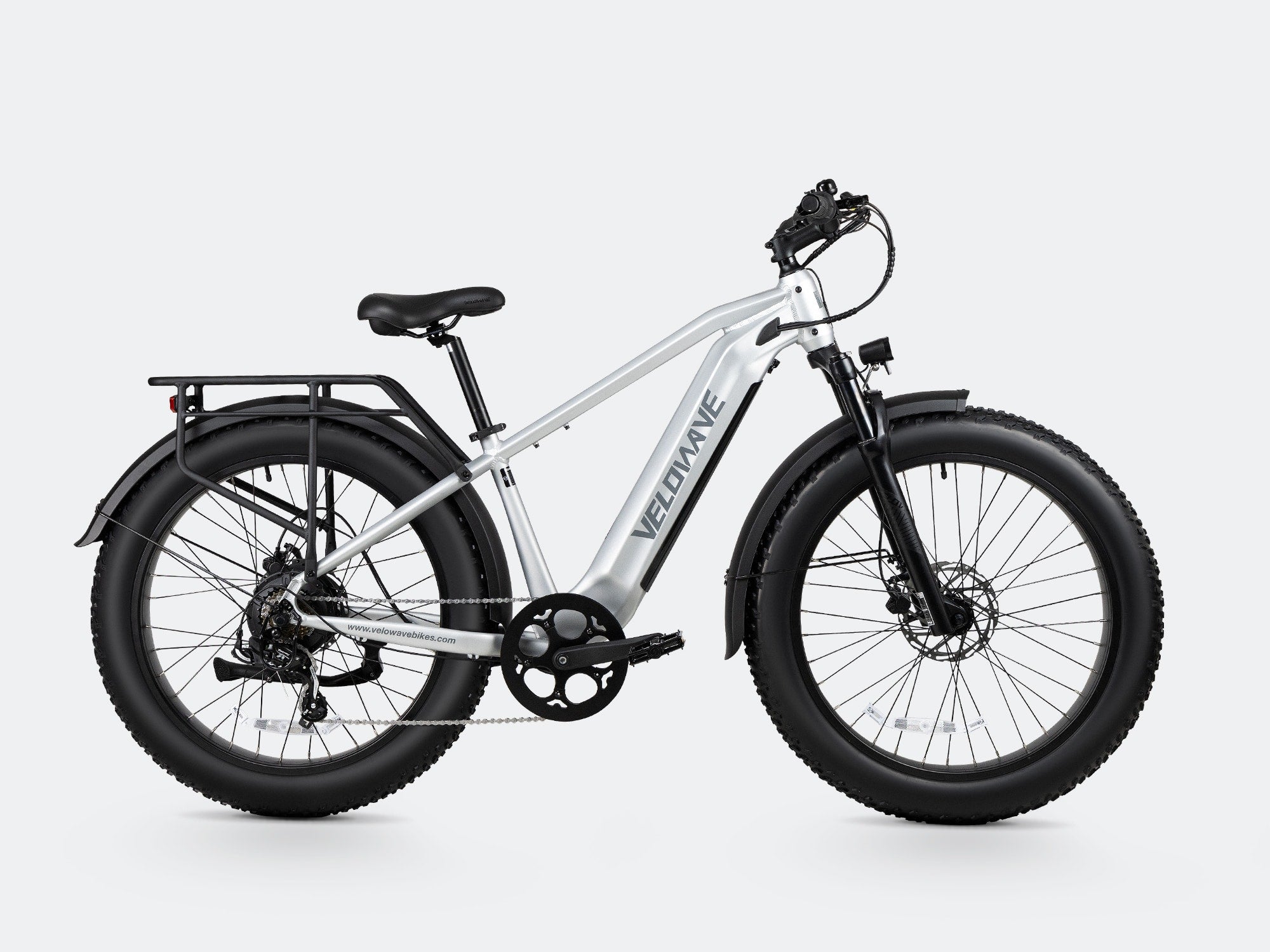

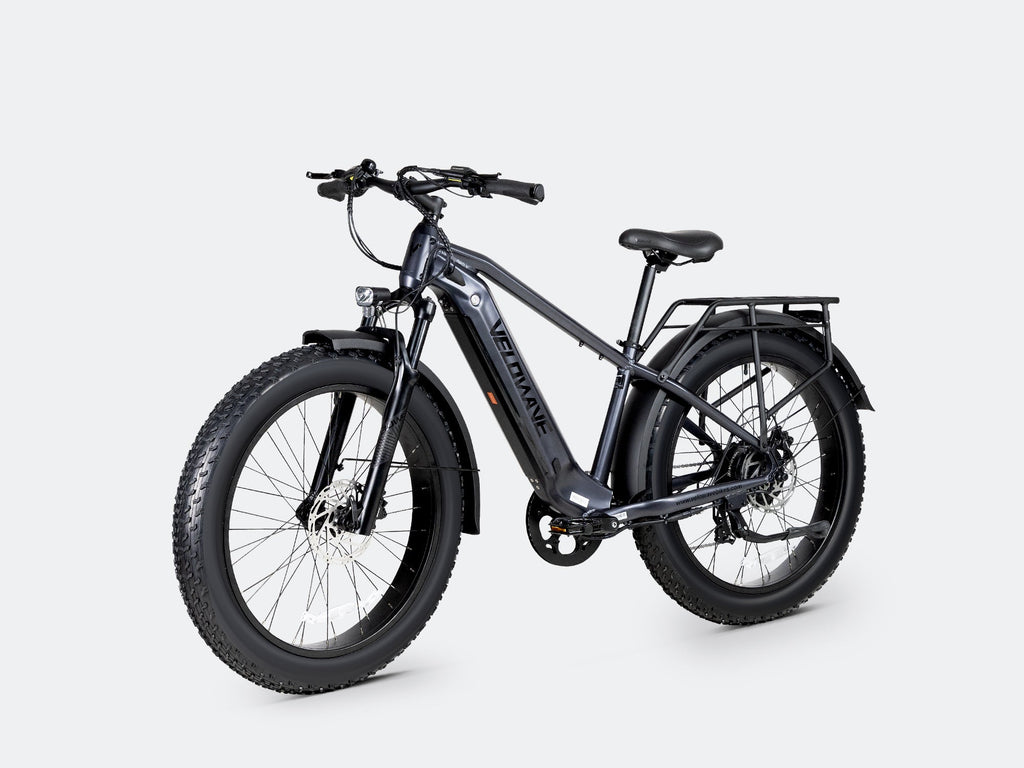

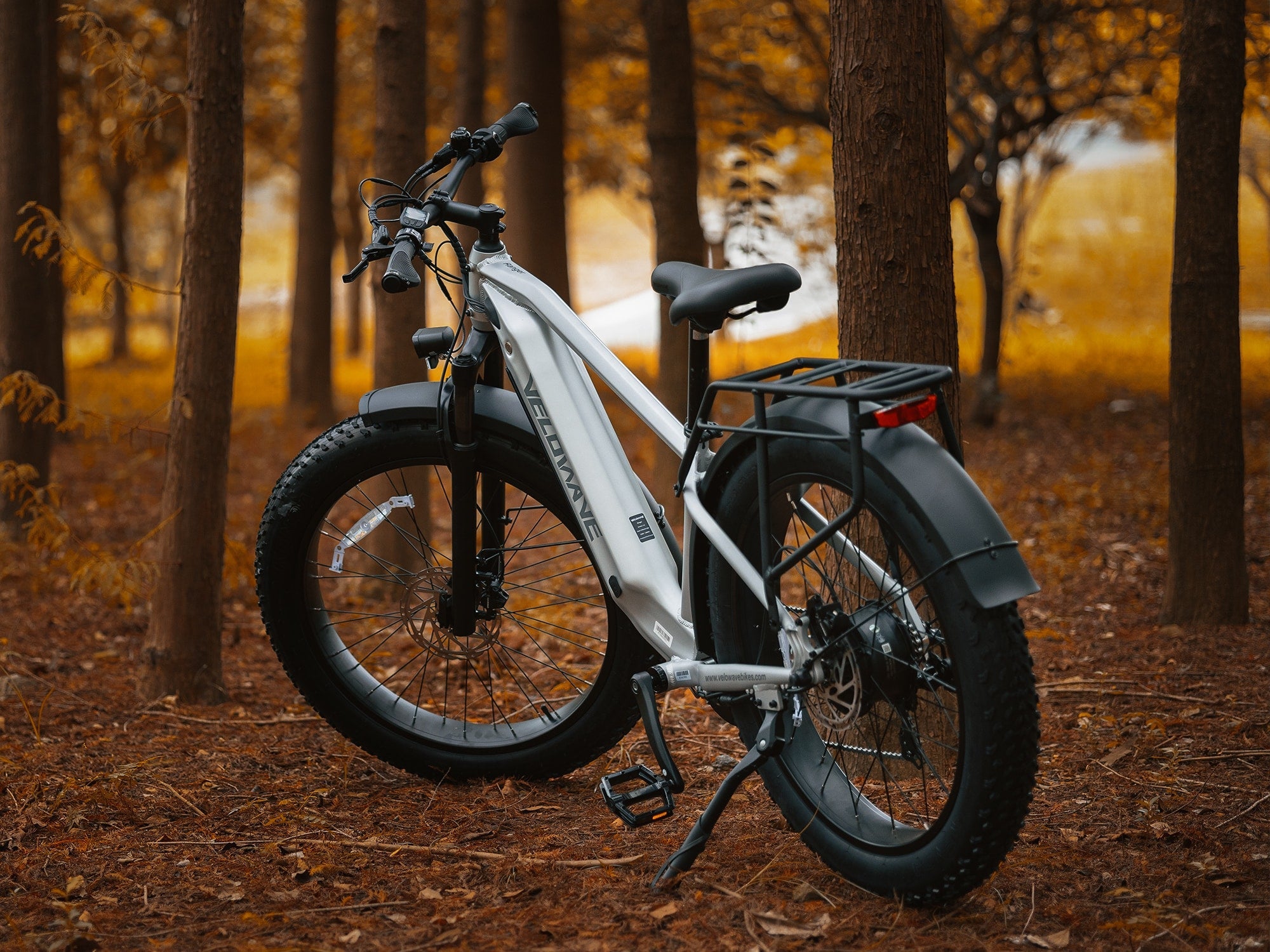

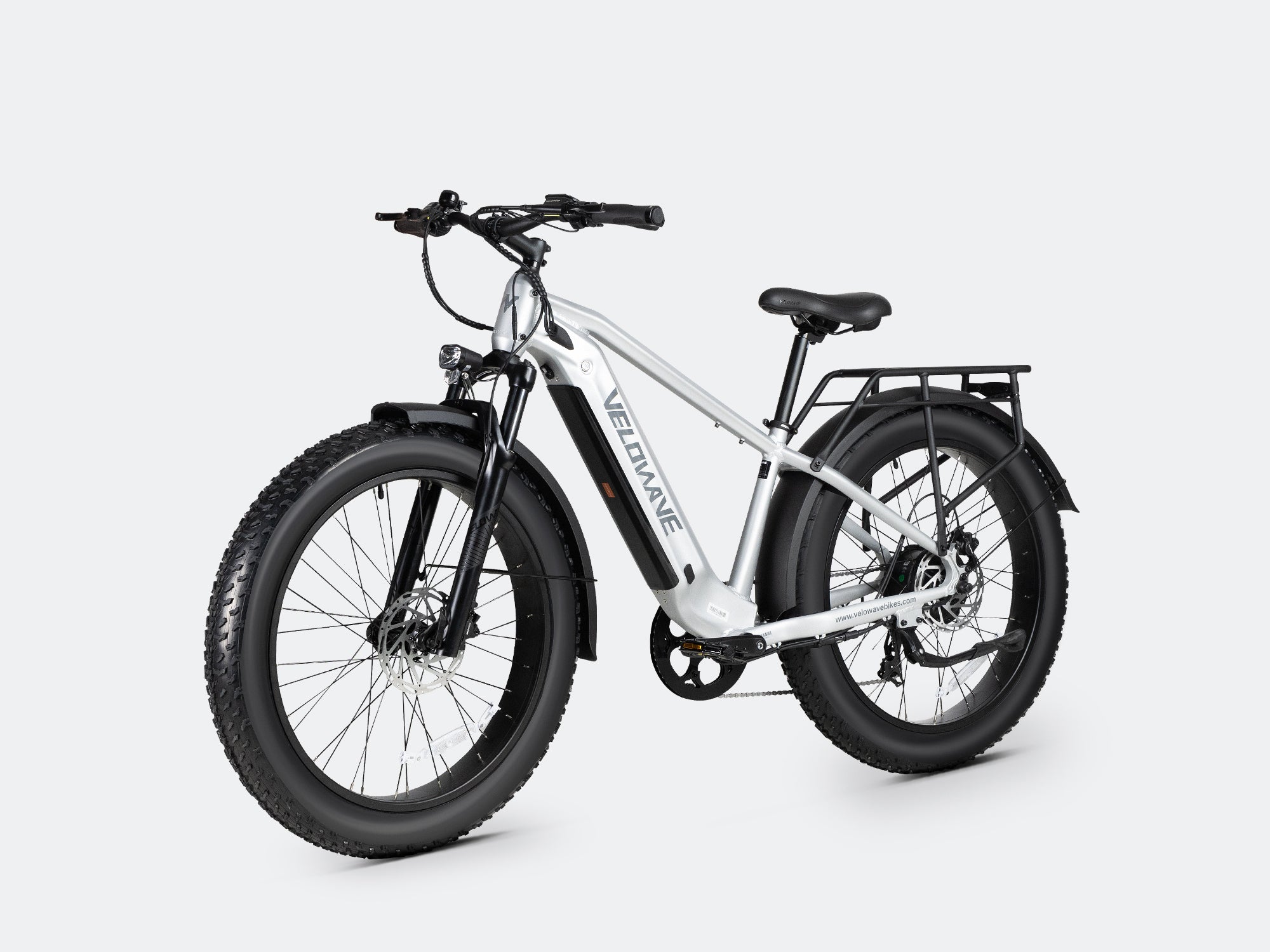

Velowave Ranger 3.0

Designed for riders who want both power and versatility, this fat-tire Class 3 ebike delivers robust performance, superior comfort, and extended range. With its torque sensor, hydraulic suspension, and 26” x 4.0” Kenda fat tires, it’s built to conquer pavement, trails, and everything in between.

🔑 Key Highlights

• 750W Motor (Peak 1000W, 85Nm): Strong acceleration and climbing power for all terrains.

• Removable 48V 15Ah LG Battery (720Wh): Up to 90 miles on pedal assist, 30 miles on throttle.

• Torque Sensor: Smooth, natural, and responsive pedaling assistance.

• Fat Tires (26” x 4.0” Kenda): Stability and grip on sand, snow, and off-road surfaces.

• Hydraulic Disc Brakes (180mm): Reliable stopping power with safety cutoff.

• Comfort-First Geometry: Wide saddle, ergonomic grips, and adjustable riding position.

📏 Specs & Sizing

• Frame Size: Standard

• Handlebar Height: 1109mm

• Reach: 404mm

• Head Tube Length: 140mm

• Seat Tube Length: 425mm

• Standover Height: 753mm

• Wheelbase: 1165mm

• Total Length: 1914mm

• Seat Height Range: 823mm – 1012mm

⚙️ General

• Class: 3 (Up to 28mph pedal assist, 20mph throttle)

• Range: Up to 90 miles (PAS) / 30 miles (Throttle)*

• Range tested under standard conditions. Actual results vary.

🛠 Frameset

• Frame: 6061 Aluminum Alloy w/ internal battery

• Fork: Hydraulic Suspension, 60mm travel, lockout

🚴 Wheels & Tires

• Rims: Aluminum 26" 36H

• Spokes: Black Stainless (Front 13G, Rear 12G)

• Hubs: Nutted disc hubs

• Tires: Kenda 26" x 4.0" Fat Tires

• Tubes: Butyl Rubber, Schrader Valve

⚡ E-System

• Battery: 48V 15Ah (720Wh), LG cells, removable

• Charger: 48V 2A (≈8 hours)

• Motor: 750W (Peak 1000W), 85Nm

• Display: TFT Smart Color Screen, backlit

• Pedal Assist: 5 levels

• Sensors: Torque sensor

• Throttle: On-demand, from standstill

• Lights: Front LED 75 LUX, Rear brake light 20 LUX

🚲 Drivetrain

• Shifter: Shimano 7-Speed RevoShift

• Crankset: 170mm / 52T

• Freewheel: Shimano 14-28T (7-speed)

• Chain: KMC 124 Link Anti-Rust

• Rear Derailleur: Shimano ARDTY500D 7-Speed

🧩 Components

• Saddle: Wide Comfort Saddle

• Seatpost: Forged Alloy Ø30.4 × 350mm

• Stem: 70mm, ±7° rise

• Handlebar: Aluminum Ø31.8mm, Width 740mm

• Headset: Sealed Bearing

• Grips: Ergonomic Comfort

• Brakes: Hydraulic Disc Brakes, 180mm rotors, power cutoff

• Kickstand: Alloy, Rear Mount

• Fenders: Plastic, 26" x 110mm

• Rear Rack: Aluminum Alloy, rated for cargo

⚖️ Weight & Capacity

• Net Weight: 37.5kg (82.7 lbs, including battery)

• Gross Weight: 45.6kg (100.5 lbs)

• Battery Weight: 4kg (8.8 lbs)

• Payload Capacity: 300 lbs

📦 Dimensions

• Product Size: 1930 × 755 × 1110mm

• Packing Size: 1590 × 325 × 895mm

✅ Perfect for riders who want all-terrain freedom with long-range performance. Whether it’s a daily commute, weekend adventure, or winter trail ride, this ebike is built to keep you going.
