Velowave Ranger

Built for Power. Designed for Adventure.

The Velowave Ranger is the ultimate all-terrain e-bike, combining raw power with everyday versatility. Equipped with a 750W BAFANG motor, fat Kenda 26” x 4.0” tires, and a hydraulic suspension fork, this bike is built to conquer anything—from rugged backcountry trails to city streets. With Class 3 performance, you’ll ride at speeds up to 28 MPH with pedal assist or cruise at 20 MPH on throttle power alone.

Whether you’re tackling steep climbs, sandy paths, or daily commutes, the Ranger gives you the freedom to explore without limits.

Key Features

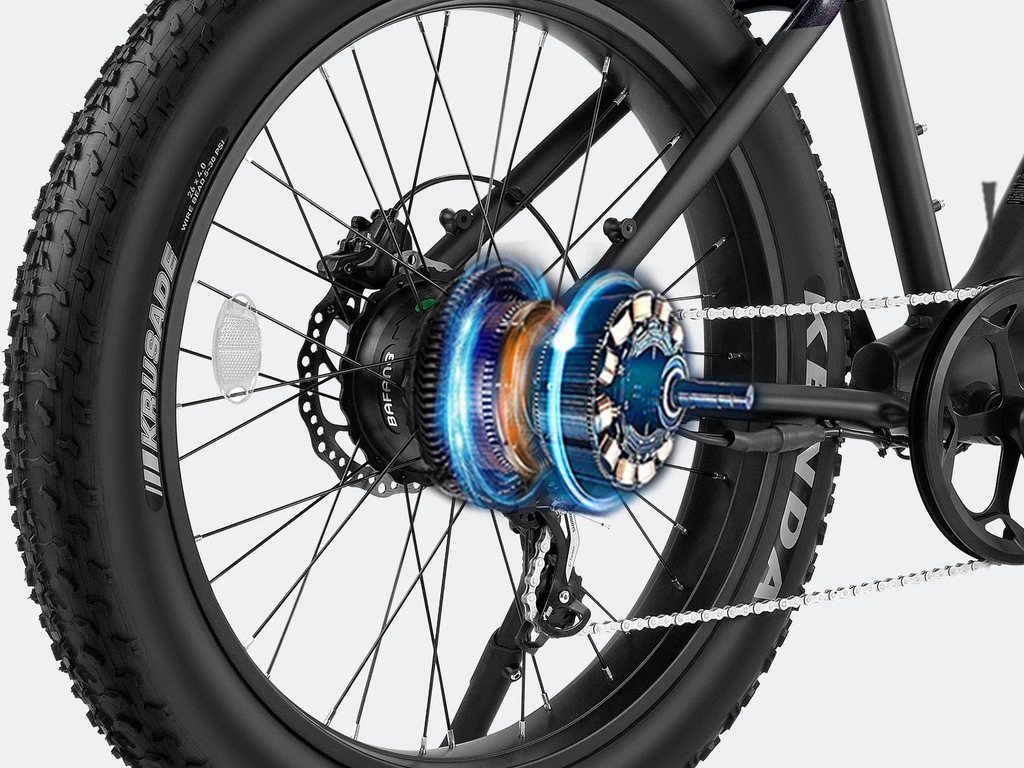

• Powerful 750W BAFANG Hub Motor
  Delivers up to 1275W peak power and 80Nm torque for effortless acceleration and hill-climbing ability.

• Class 3 E-Bike Performance
  Pedal assist up to 28 MPH, throttle up to 20 MPH. Choose your style of riding—fast, smooth, and always in control.

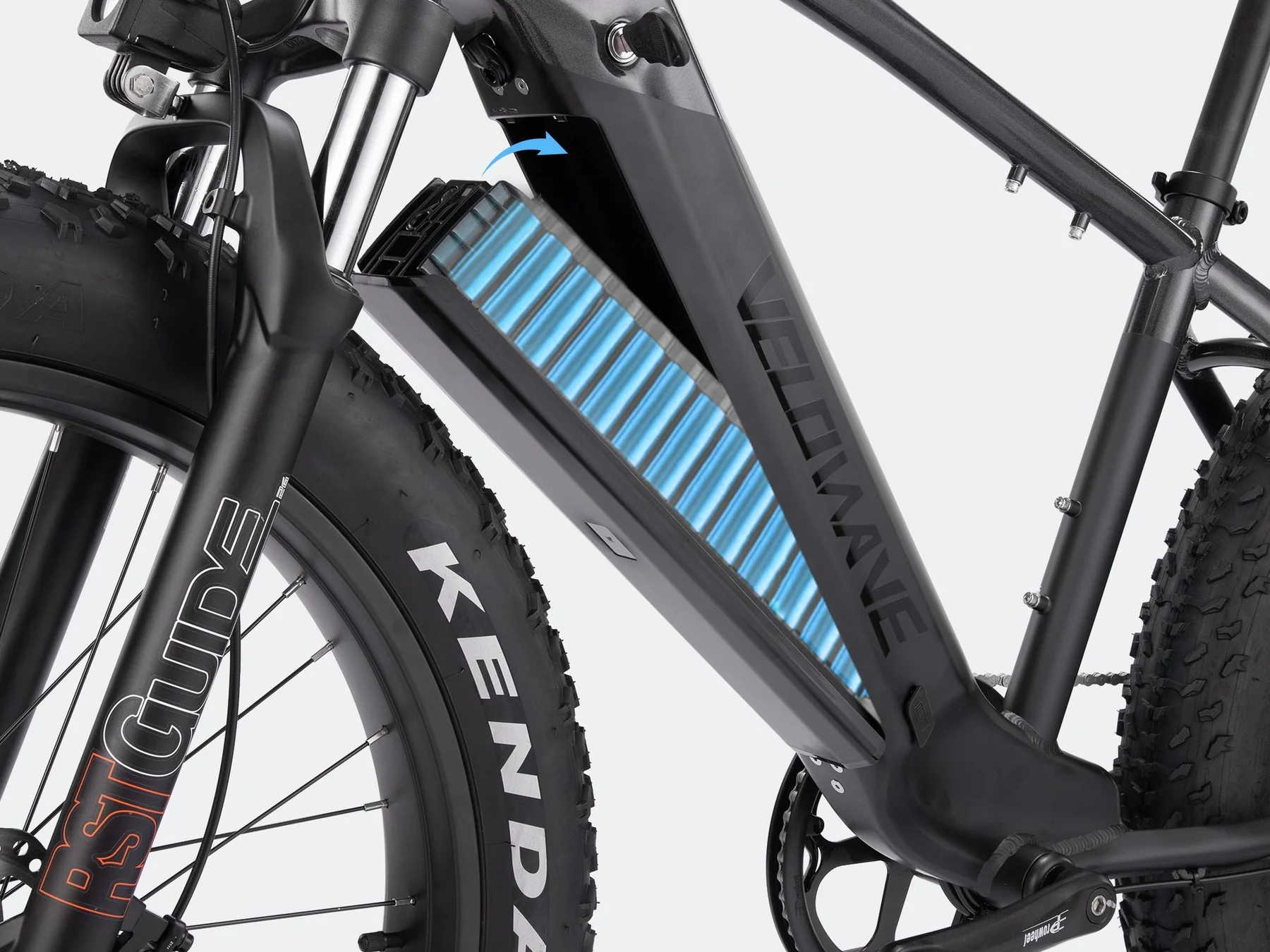

• Long-Range 48V 15Ah Battery
  Equipped with LG 21700 cells, offering 25–40+ miles per charge. Perfect for both long commutes and weekend adventures.

• Rugged Fat Tires
  Kenda 26” x 4.0” fat tires provide unmatched stability, grip, and comfort on pavement, gravel, sand, or snow.

• Hydraulic Suspension Fork
  Absorbs bumps and shocks, keeping your ride smooth and controlled over rough terrain.

• Hydraulic Disc Brakes
  Reliable stopping power with 180mm rotors, even when fully loaded or riding downhill.

• Shimano 7-Speed Drivetrain
  Smooth and precise shifting, giving you total control over speed and cadence.

• Durable 6061 Aluminum Frame
  Lightweight, corrosion-resistant, and designed to handle demanding rides with a 300 lb payload capacity.

Specifications

General

• Class: 3 (Pedal Assist to 28 MPH / Throttle to 20 MPH)

• Range: 25–40+ miles pedal assist / 35+ miles throttle

• Motor: BAFANG 750W geared hub (1275W peak, 80Nm torque)

• Battery: 48V 15Ah (720Wh, LG 21700 cells), removable

• Charger: 48V 2A, aviation connector, UL Listed

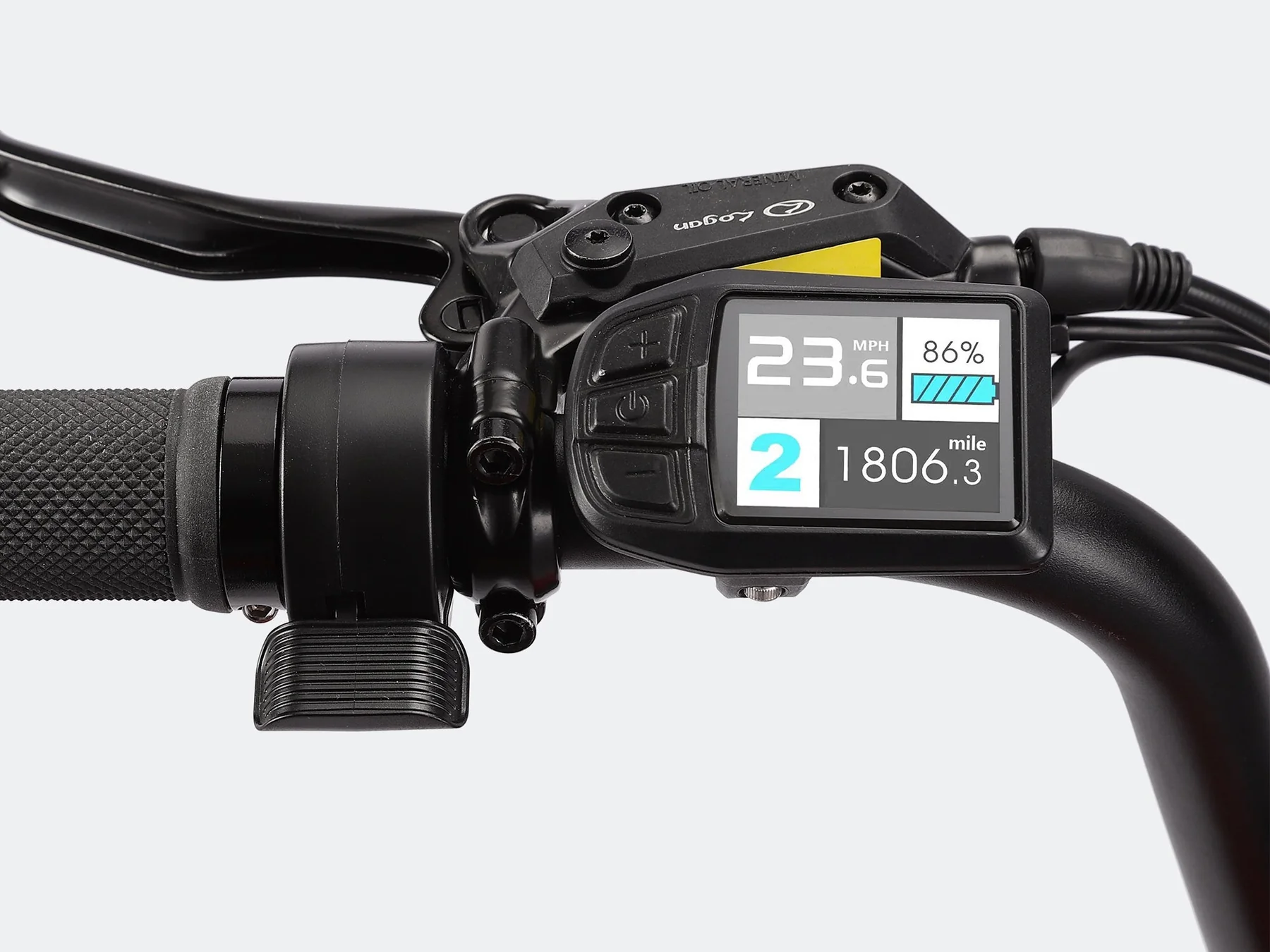

• Display: Full-color multifunction display

• Assist Modes: Pedal assist with cadence sensor + thumb throttle

• Lights: 48V 10W LED front light

Frameset

• Frame: 6061 Aluminum, internal battery, internal cable routing

• Fork: Hydraulic suspension fork

Wheels & Tires

• Tires: Kenda 26” x 4.0” fat tires

• Rims: Aluminum, 26” x 3.0”

• Spokes: Stainless steel, 13G front / 12G rear

Drivetrain

• Shifter: Shimano 7-speed

• Derailleur: Shimano long cage

• Crank: 52T, 170mm alloy crank

• Freewheel: 7-speed

• Chain: Reinforced for e-bikes

Components

• Brakes: Hydraulic disc brakes, 180mm rotors

• Saddle: Wide comfort saddle

• Handlebar: Alloy, 705mm width

• Grips: Ergonomic nylon lock-on

• Seatpost: Forged alloy, Ø31.6 × 350mm

• Kickstand: Rear-mount alloy

Size & Weight

• Total Length: 1940mm

• Wheelbase: 1188mm

• Handlebar Height: 1080mm

• Standover Height: 768mm

• Seat Height: 850–1084mm

• Net Weight: 32kg (70.5 lbs)

• Battery Weight: 3.85kg (8.5 lbs)

• Payload Capacity: 136kg (300 lbs)

Why Choose the Ranger?

If you want one bike that can do it all, the Ranger is your answer. It delivers powerful performance, long range, and rugged durability, all in a sleek, adventure-ready package. Whether you’re an off-road explorer or an urban commuter who refuses to settle, the Ranger is built to keep up with your lifestyle.

👉 Take control of your ride—get the Velowave Ranger today and experience freedom without limits.
